"Crystal Spirit"

Our second 24 metre Aluminium Passenger Catamaran launched in April 2003.  This vessel carries 200 passengers in comfort.  Peter Verell, the owner of Aqua Spirit (launched October 2002) was so impressed with the vessel he has bought another - "Crystal Spirit."

Excellence in finish and economy are just a couple of reasons that these boats stand out.   The design of the hulls and motor configuration means the boat does not slam in a head sea and provides a smooth vibration free ride.   and the passenger layout is excellent.

Click on any of the images below to expand the photos.

Click here to see workboat world article on Crystal Spirit.

Click here to see Aqua Spirit's specifications

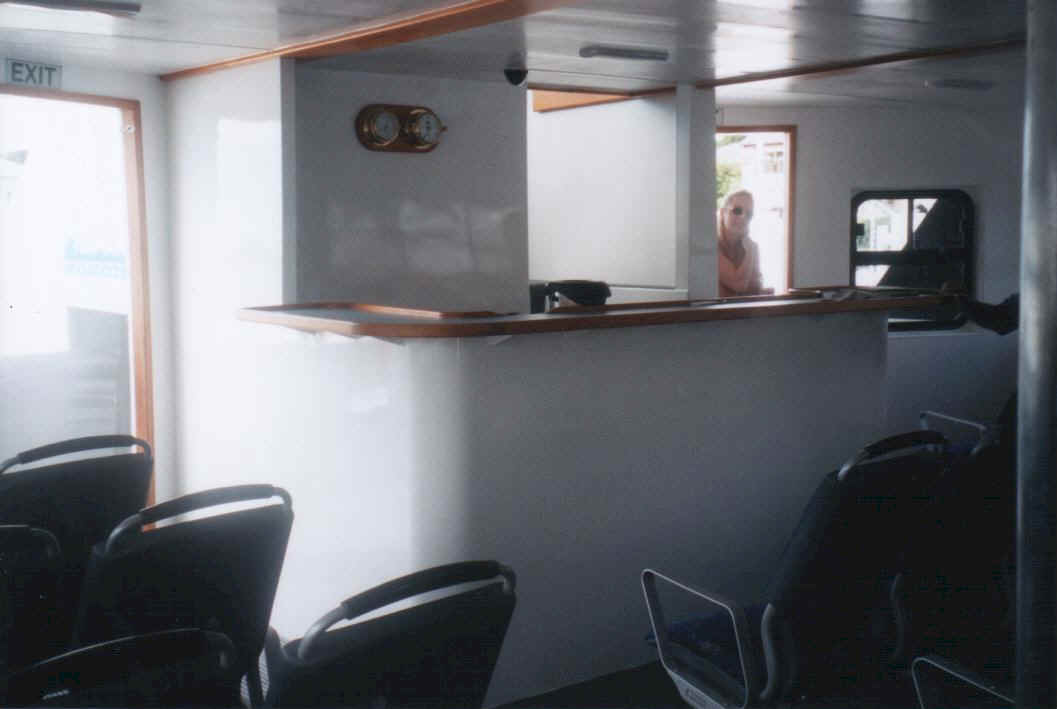

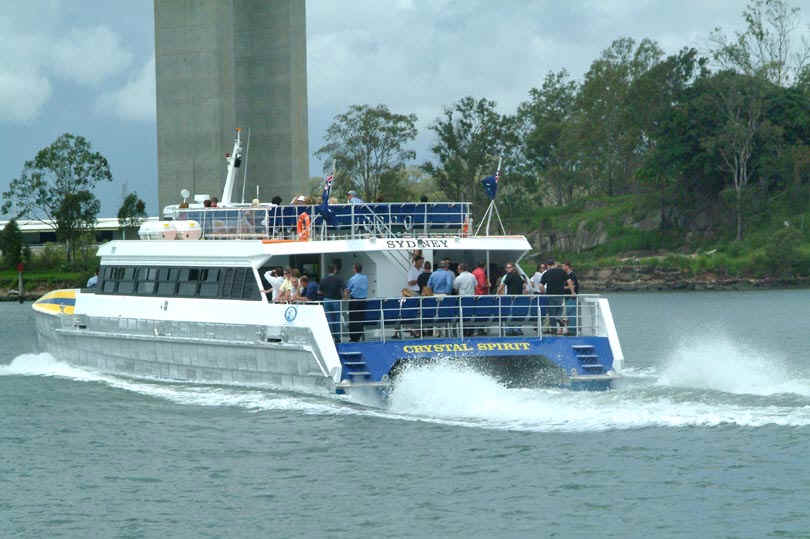

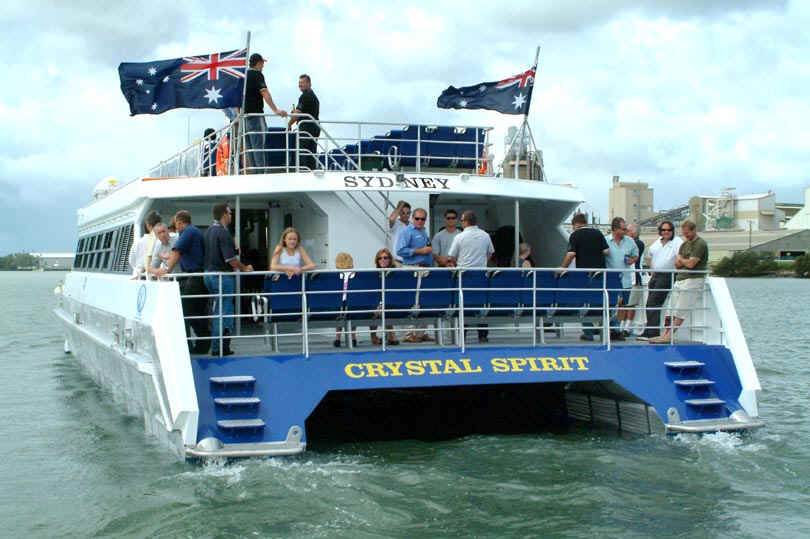

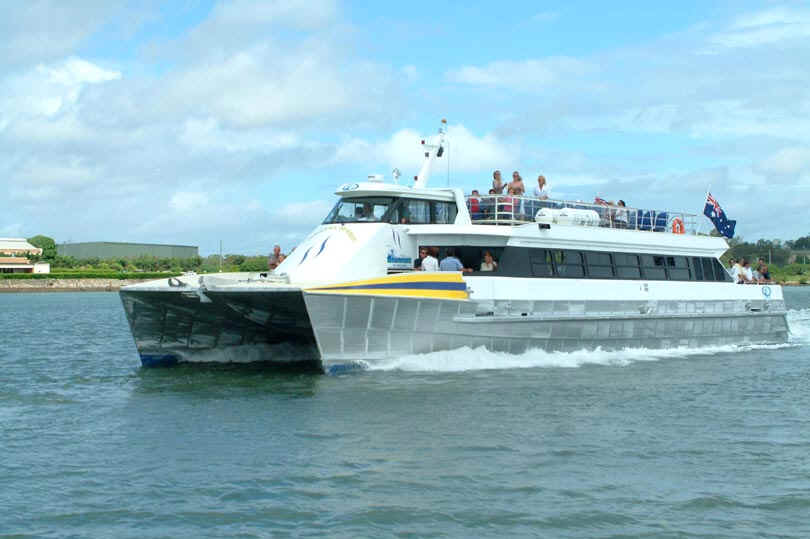

 Front and rear loading of passengers. Crystal Spirit making tracks  wpe8.jpg (37970 bytes) wpeA.jpg (51689 bytes) The Bar! wpe6.jpg (43523 bytes)

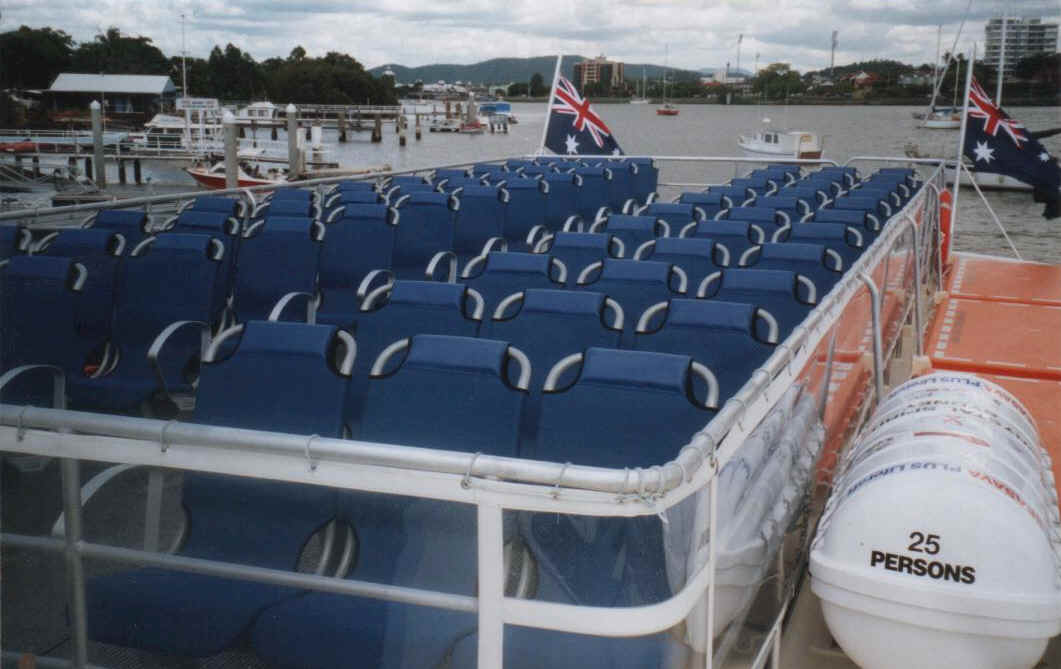

Top Deck Passenger Layout

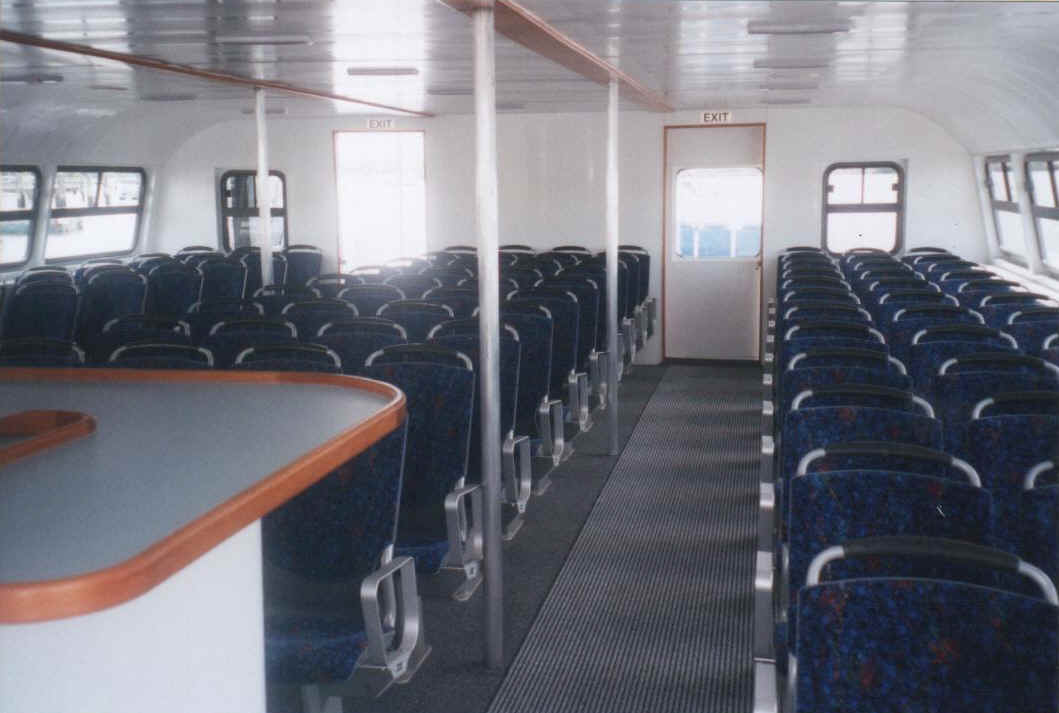

Lower Deck Layout






Specifications

Vessel Type Aluminium Passenger Cataraman
In survey to USL Class 1C, 1D and 1E
Home Port  Sydney Australia
Owner Palm Beach Ferry Service
Designer Commercial Marine Consulting Services
Builder New Wave Cataramans
Length Overall 24.92 Metres
Length Waterline 23.83 Meters
Beam 7.76 Metres
Draught 1.40 Metres
Construction Material Aluminium

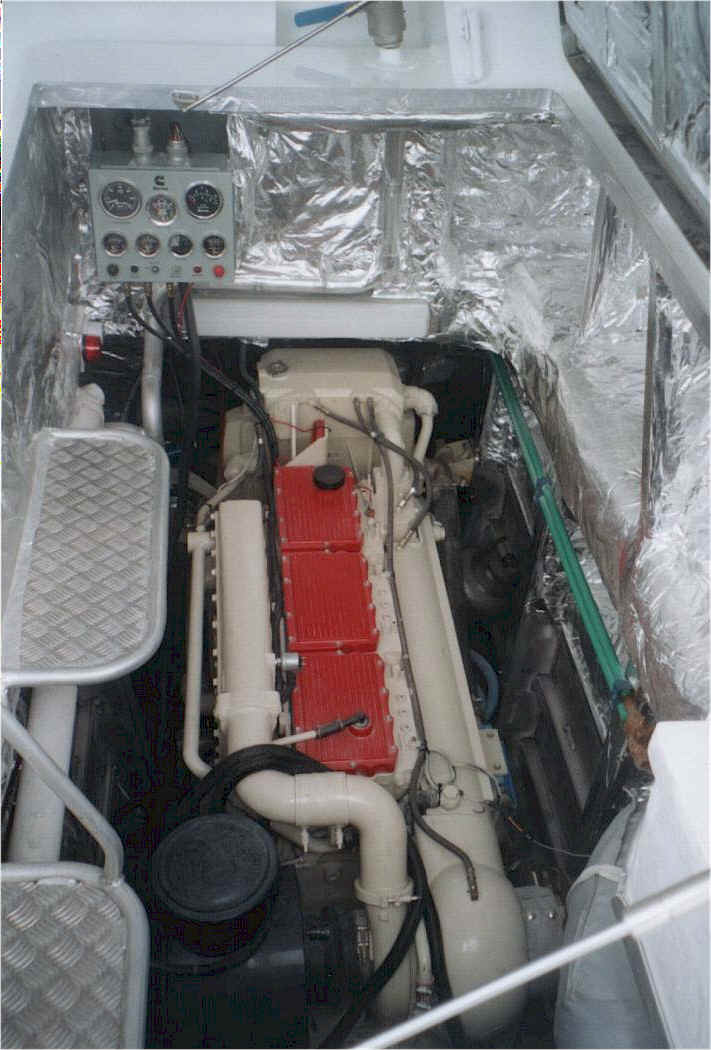

Main Engines 2 x Cummings N143M 525 hp each
Gearboxes 2 x ZF322A
Propellers 2 x Rogers and Lough 28.5" 5 bladed
GPS, Colour Plotter and Radar Ratheon
Steering Hydrive Engineering
Winches Muir Winches and Windlasses
Windows Alfab
Seating Transport Seating Technology
Painting/coatings Jotum Paints
Fuel 3000 litres
Maximum Speed 27 knots
Cruising Speed 24 knots
Passengers Class 1D - 196,  Class 1C - 100

 -
