Sea Speed Design can redesign and reconfigure these working designs to suit your exact needs.

Saratoga GA PlanGA Plan

Note: Most pictures will expand or open another page if you click on them. Use the back button to return to the original page.

wpe2E.jpg (60805 bytes)wpe38.jpg (65733 bytes) wpe3A.jpg (59582 bytes) wpe2C.jpg (58261 bytes) wpe30.jpg (60167 bytes) wpe32.jpg (72730 bytes) wpe34.jpg (59060 bytes)

Saratoga

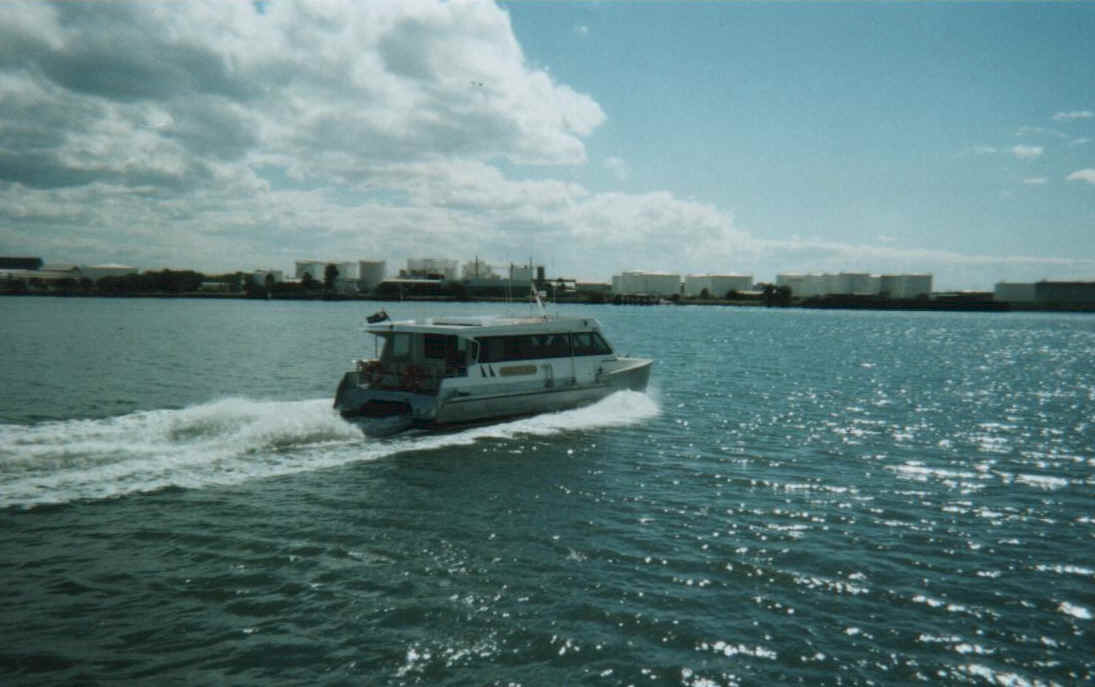

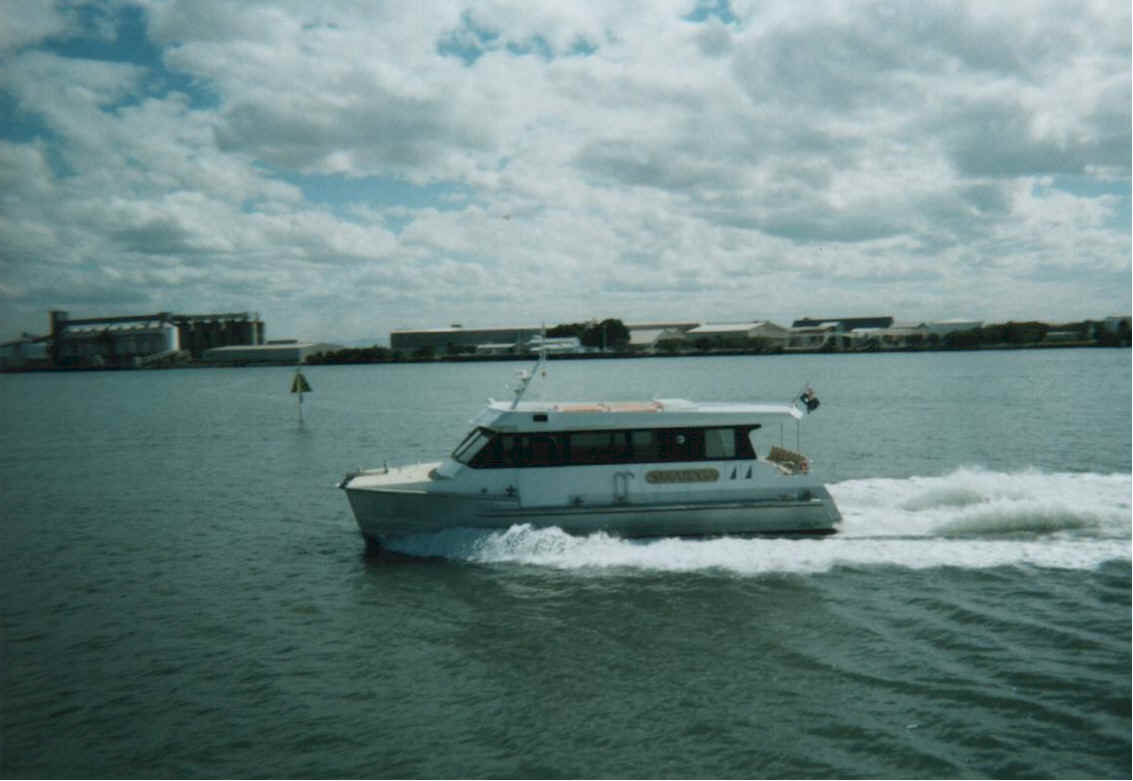

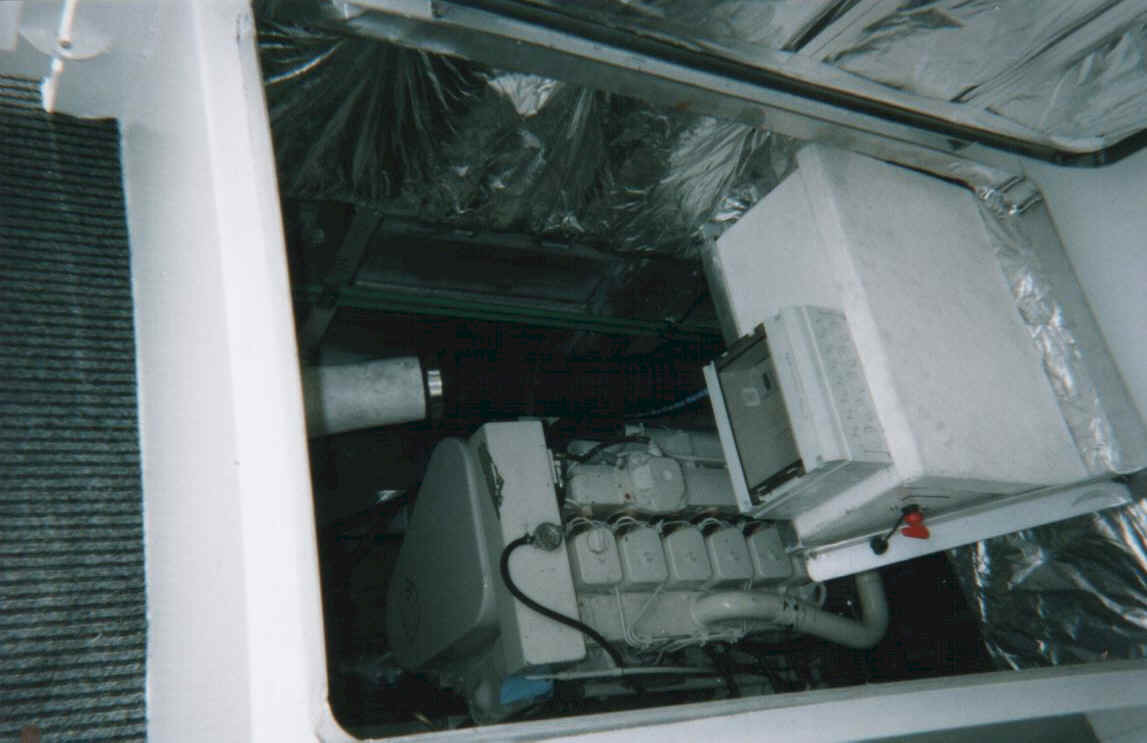

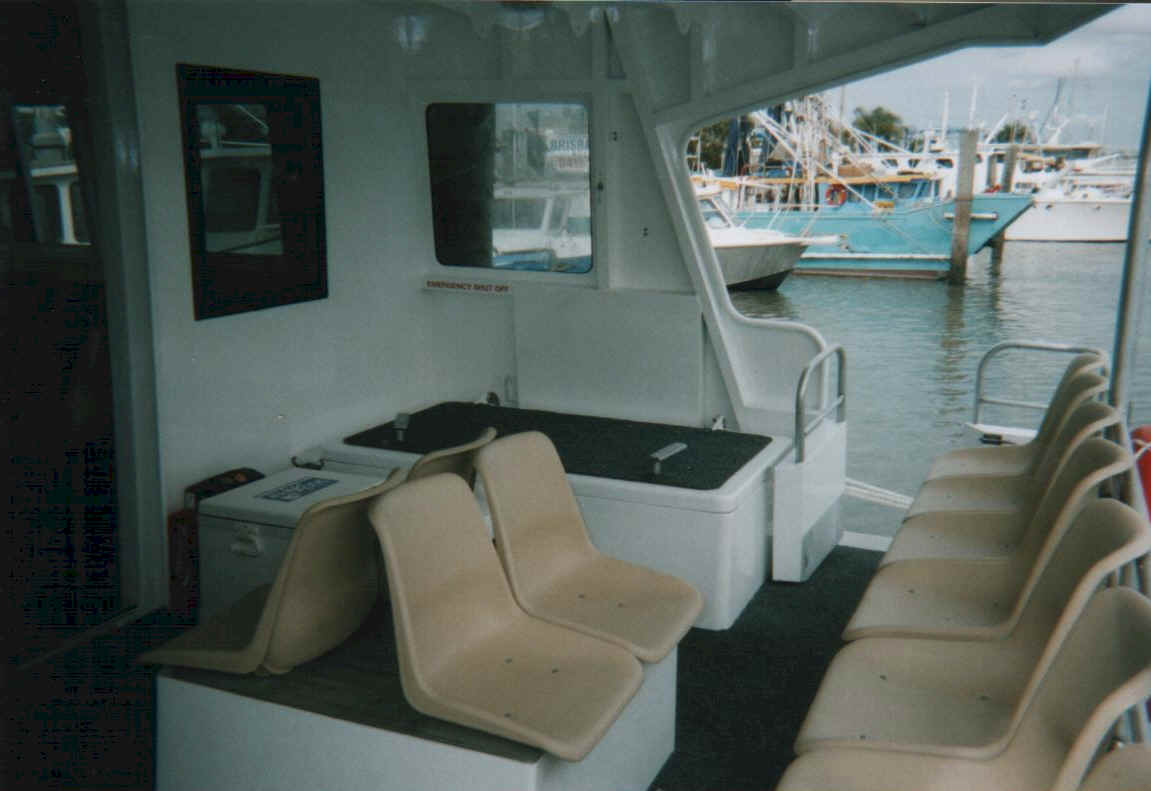

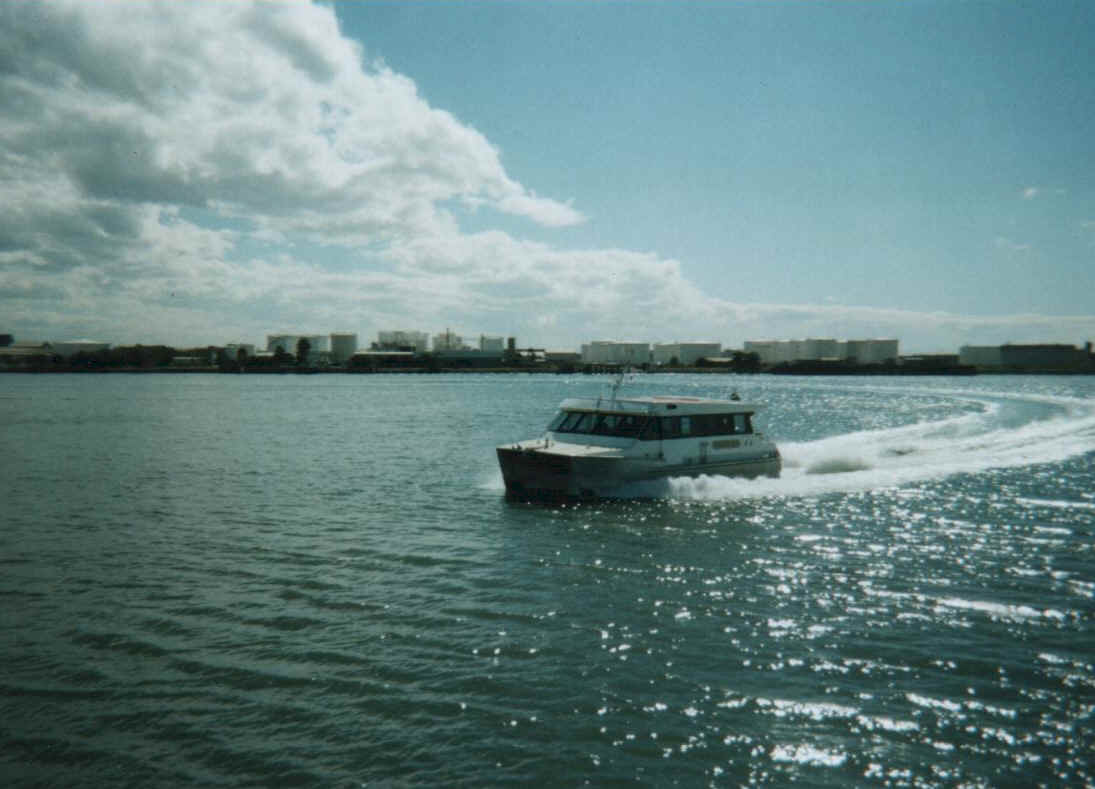

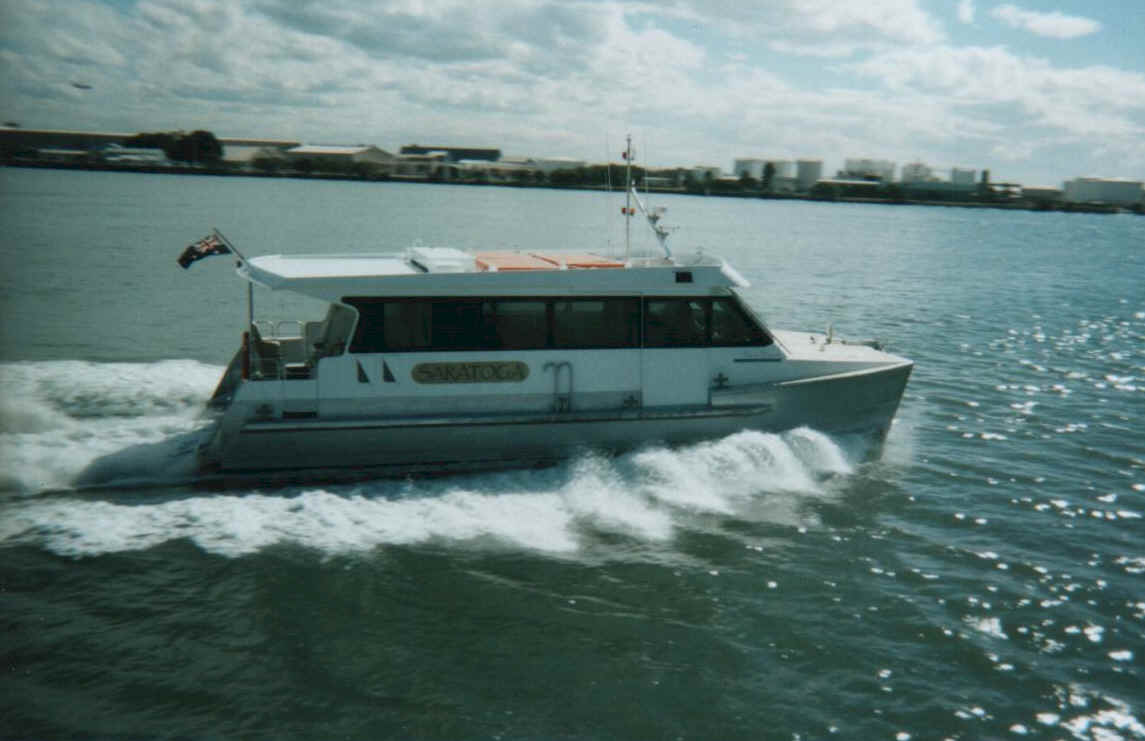

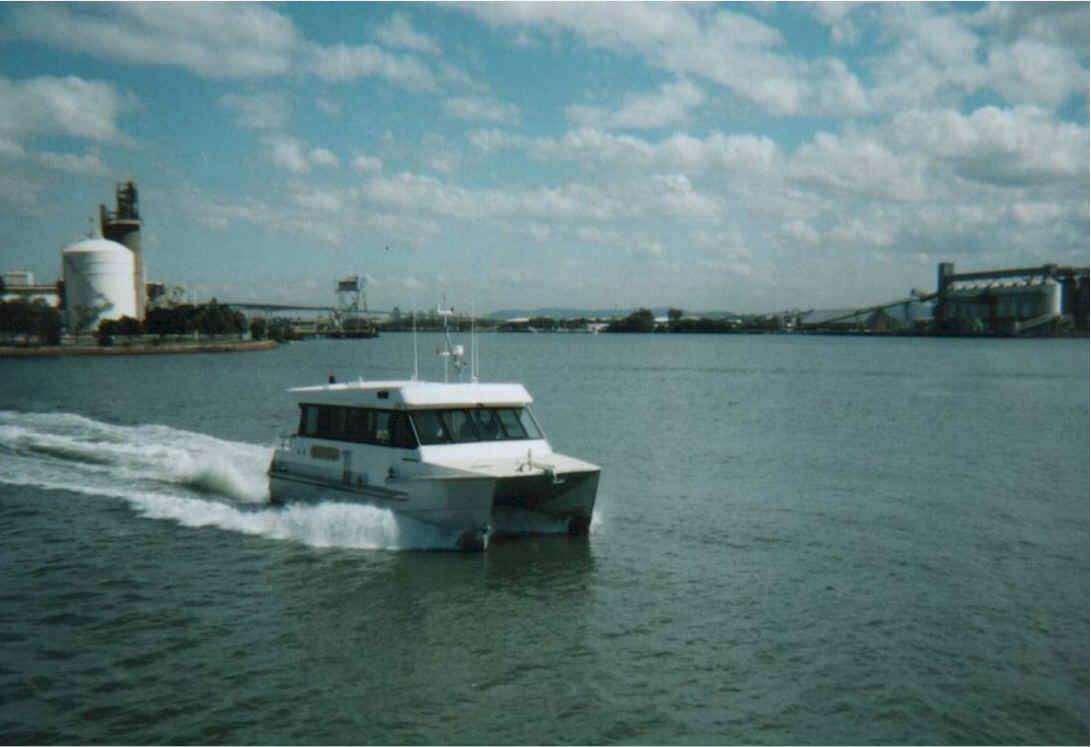

A 12 m passenger catamaran ferry with the latest new design in hulls.  Great performance from 2 x 220 hp 6BT Cummings diesel engines and later refitted with 2 x Cummins 6BTA with 330 H.P. per side giving a top speed of 24-25 knots. This economy standard commuter catamaran operates in the north Sydney region with seating for 65 passengers and two crew. As this vessel is used primarily as commuter ferry, interior fitout is basic and inexpensive yet functional and low maintenance.

The owners have found this vessel very fuel efficient and an ideal configuration for its purpose.









Specifications

Length overall 11.99 m
Length waterline 11.97 m
Beam 5.41 m
Draught 1.1 m
Displacement, full load 18 T
Maximum speed 24 kt  with the 330 H.P.
Operational speed 20 kt with the 330 H.P.
Passengers 65
Fuel capacity 2 x 600 litres
Water capacity 1 x 500 litres

Original Propulsion

Re-Fit Propulsion

2 x 220 h.p.Cummins

2 x 330 h.p. Cummins
